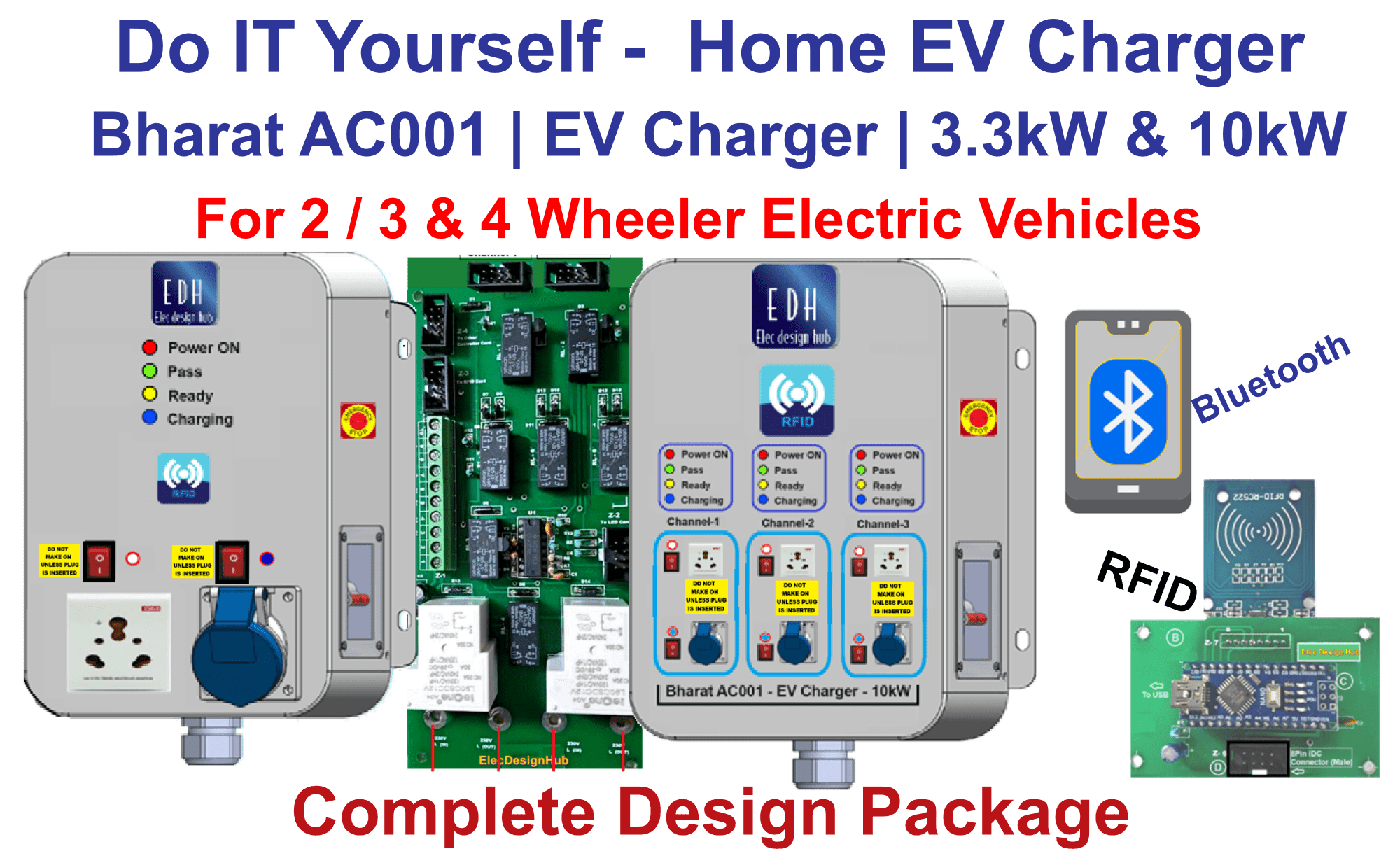

Do IT Yourself Bharat AC001 EV Charger with Complete Design Package for 3.3kW – 230V AC – Single Phase and 10kW 415V AC – Three Phase with PCB Design + Schematics + BOM + Codes + Wiring Diagram & Testing Support.

With this package, you’ll be able to build a fully working Bharat AC001 EV Charger – Either a Single Channel 3.3kW or a 3 Channel 10kW Home EV Charger for your Home, Garage, Parking locations, Housing Apartments and many other places suitable for 2W / 3W / 4W Electric Vehicles.

The Single Channel Package is 230V AC Single Phase. It has two 16A 3 Pin Charging Sockets – One Standard Household Socket and the other one is  16A 3 Pin Blue Industrial Socket. The Sockets are interlocked and the user can use any one Socket at a time for charging through selectable Rocker Switches. The Dual Socket availability enables diferent brands of vehicle charging.

The Three Channel Package is 415V AC Three Phase. Each Channel has two 16A 3 Pin Charging Sockets – One Standard Household Socket and the other one is  16A 3 Pin Blue Industrial Socket. The Sockets are interlocked and the user can use any one Socket at a time for charging through selectable Rocker Switches. All the 3 Channels can be used at a time to charge 3 electric vehicles. This is very useful charger for Apartment Parking Lot, Restaurants, Malls Parking, Multi-storey Car Park and many more places.

Those who have ventured into manufacturing EV Chargers, can cut short their valuable cost and time. This Design Package has already become popular to electronic development engineers. This package is an excellent starting point to develop fully customizable commercial EV Chargers.

We have worked hard so that you can achieve the dream success in manufacturing world class EV Chargers through this practical package. Our designs are backed by successful field testing of the product, and the main focus is to build a Marketable Product. This package has complete practical engineering details so that you can easily build prototypes and marketable products yourself at your facility.

We are 100% transparent and there’s no hidden charges in our design package.

Just fill the Simple Form given below and send it to us. You have to add your name and a valid Email ID. You may fill the message field or keep it blank.

We’ll send you a ‘PDF File‘ to your Mail directly as soon as possible – Titled: “Start-up_Diversify_EV Charger Design Package”. This file has the following details:

(1) Package – A: Complete Design Package to manufacture all Models of AC EV Chargers – 3.3kW – 10kW.

(2) Package – B: Design Package for creating a Computerized Test Set-up to test Cards and EV Chargers during production.

(3) Package – C: Online training program for engineers specializing in the assembly and testing of electric vehicle chargers.

(4) Our Commercial Terms and Conditions.

(5) Price Part.
