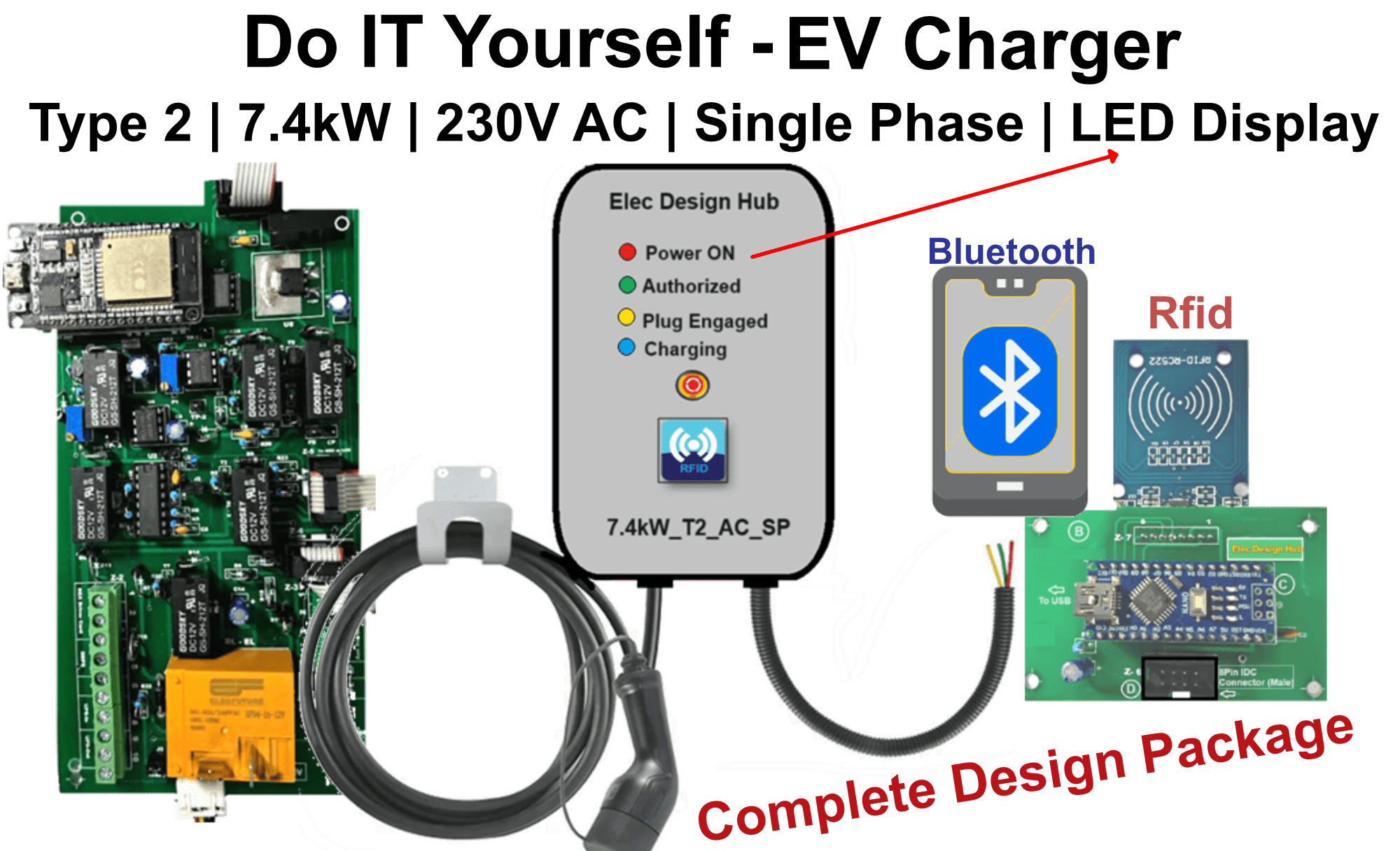

Ready to Manufacture 7.4kW AC EV Charger?
Discover Our 7.4kW AC EV Charger -Type 2 – 230V AC-SP-LED display-OCCP 1.6J Compliant Design Package!
If you’re dreaming of manufacturing world-class EV chargers, our Complete Design Package for the 7.4kW AC EV Charger – Type 2 (Code: A1) is your shortcut to success! This isn’t just a guide; it’s a fully-fledged engineering solution designed to help you build a marketable product.
Here’s what you get in this incredible package:
- Detailed PCB Design and Schematics
- Comprehensive Bill of Materials (BOM)
- All Necessary Source Codes
- Clear Wiring Diagram
- Ready-to-use Manufacturing Files
Imagine being able to produce a fully functional Type 2 AC EV Charger that’s perfect for a wide range of applications – from your own home or garage to large parking locations, housing apartments, and even commercial settings. This package makes it possible!
The Technology Behind Our 7.4kW AC EV Charger Design
Our AC EV Chargers (Type 2) are all about error-free charging. They precisely control the charging process through PWM-based communication with the electric vehicle, ensuring the safety of the Li-Ion battery and providing a user-friendly charging experience. The key to this is generating a steady PWM signal – something we’ve mastered (check out our blog on “Pilot Wire Communications and controls in Type 2 EV Charger” for a deeper dive!). We’ve chosen ESP32 for its robust digital controls, ensuring that perfectly steady PWM signal.
For those already involved in or looking to venture into EV charger manufacturing, this package is a game-changer. It will significantly cut down your valuable costs and development time. In fact, it’s already a popular choice among electronic development engineers and serves as an excellent foundation for creating highly customizable commercial EV chargers.
We’ve put in tremendous effort to create a practical package that helps you achieve your manufacturing dreams. Our designs aren’t just theoretical; they are backed by successful field testing, with a core focus on helping you build a genuinely marketable product. You’ll find complete, practical engineering details that empower you to easily build prototypes and marketable products yourself, right from your own facility.
Transparent Process: No Hidden Surprises!
We believe in complete honesty. You’ll find that we are 100% transparent, with absolutely no hidden charges in our design package.
Just fill the Simple Form given below and send it to us. You have to add your name and a valid Email ID. You may fill the message field or keep it blank.
We’ll send you a ‘PDF File‘ to your Mail directly as soon as possible – Titled: “Start-up_Diversify_EV Charger Design Package”. This file has the following details:
(1) Package – A: Complete Design Package to manufacture all Models of AC EV Chargers – 3.3kW – 10kW.
(4) Our Commercial Terms and Conditions.
(5) Price Part.
