Elec Design Hub G+4 Complete Fabrication Kit.
The Engineered Standard for Low-Rise Vertical Mobility.
Our G+4 Kit provides the entire electronic backbone for your elevator, from the machine room motherboard to the premium Car Operating Panel display. Stop worrying about component compatibility.
The Complete Ecosystem Includes:

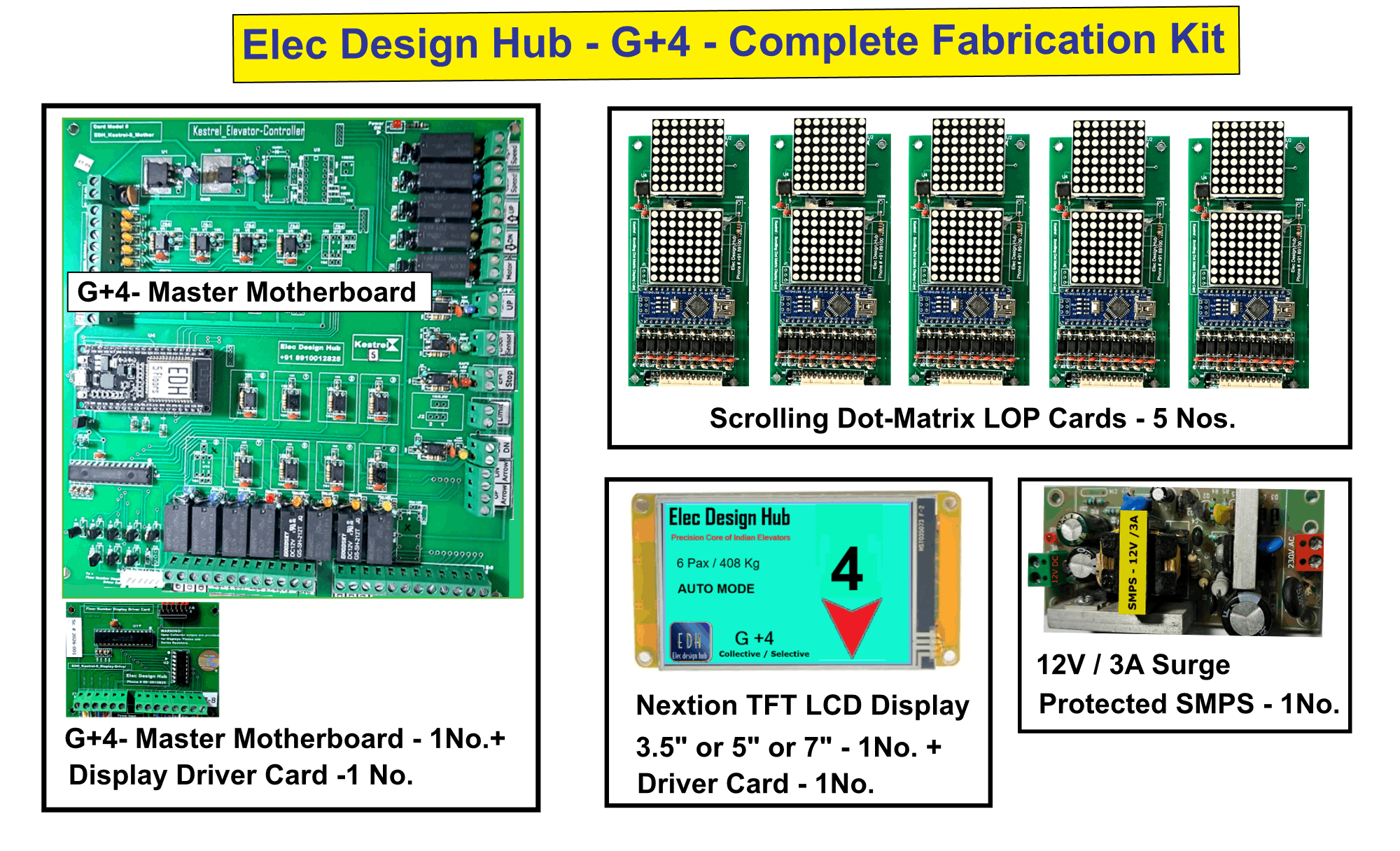

- 1x Master Motherboard + Display Driver: The highly reliable core logic controller.
- 5x Scrolling Dot Matrix LOP Cards: High-visibility hallway displays for Ground through 4th floor.
- 1x Premium Nextion TFT Driver Card (COP): A modern, full-color interface for the elevator cabin.
- 1x Heavy-Duty SMPS Card: Clean, isolated power designed specifically for the electrical noise of elevator shafts.
Here’s an “Engineering Bonus” for you!
Our Commitment to Your Fabrication Team:
We don’t just ship parts; we supply the blueprint.
Standard Order (1 to 4 Kits): > Ideal for testing and prototyping. Includes our Suggestive Elevator Control Panel Wiring Diagram and Complete BOM. You get a proven reference design to base your panel around.
OEM Partner Order (5+ Kits):
The ultimate value for high-volume manufacturers. Order 5 or more kits, and our engineering team will provide a Fully Customized Wiring Diagram and BOM tailored specifically to your factory’s standard panel enclosures and contactor choices. We do the heavy engineering lifting for you.
The Technology Behind Our 7.4kW AC EV Charger Design
Our AC EV Chargers (Type 2) are all about error-free charging. They precisely control the charging process through PWM-based communication with the electric vehicle, ensuring the safety of the Li-Ion battery and providing a user-friendly charging experience. The key to this is generating a steady PWM signal – something we’ve mastered (check out our blog on “Pilot Wire Communications and controls in Type 2 EV Charger” for a deeper dive!). We’ve chosen ESP32 for its robust digital controls, ensuring that perfectly steady PWM signal.
For those already involved in or looking to venture into EV charger manufacturing, this package is a game-changer. It will significantly cut down your valuable costs and development time. In fact, it’s already a popular choice among electronic development engineers and serves as an excellent foundation for creating highly customizable commercial EV chargers.
We’ve put in tremendous effort to create a practical package that helps you achieve your manufacturing dreams. Our designs aren’t just theoretical; they are backed by successful field testing, with a core focus on helping you build a genuinely marketable product. You’ll find complete, practical engineering details that empower you to easily build prototypes and marketable products yourself, right from your own facility.
Transparent Process: No Hidden Surprises!
We believe in complete honesty. You’ll find that we are 100% transparent, with absolutely no hidden charges in our design package.
Just fill the Simple Form given below and send it to us. You have to add your name and a valid Email ID. You may fill the message field or keep it blank.
We’ll send you a ‘PDF File‘ to your Mail directly as soon as possible – Titled: “Start-up_Diversify_EV Charger Design Package”. This file has the following details:
(1) Package – A: Complete Design Package to manufacture all Models of AC EV Chargers – 3.3kW – 10kW.
(4) Our Commercial Terms and Conditions.
(5) Price Part.
