Type 2 EV Charger Connector | 5 Metre Cable (32A Single Phase)
₹5,000.00
A heavy-duty IEC 62196-2 Type 2 EV connector tethered to a 5-meter copper cable. Rated for 32A single-phase (7.4kW) power delivery. Engineered for OEM integration, this assembly guarantees Zero Error mechanical mating and reliable Proximity Pilot/Control Pilot signalling for commercial AC EVSE builds.
32A Type 2 EV Charging Assembly (7.4kW):
This 32A, 5-meter Type 2 connector is the definitive tethered cable solution for single-phase 7.4kW AC EVSE manufacturing. Compliant with the IEC 62196-2 standard, it ensures universal compatibility with all major modern electric vehicles, delivering high-efficiency AC power with strictly minimized thermal resistance across the terminal pins.
Engineering Advantage for OEMs:

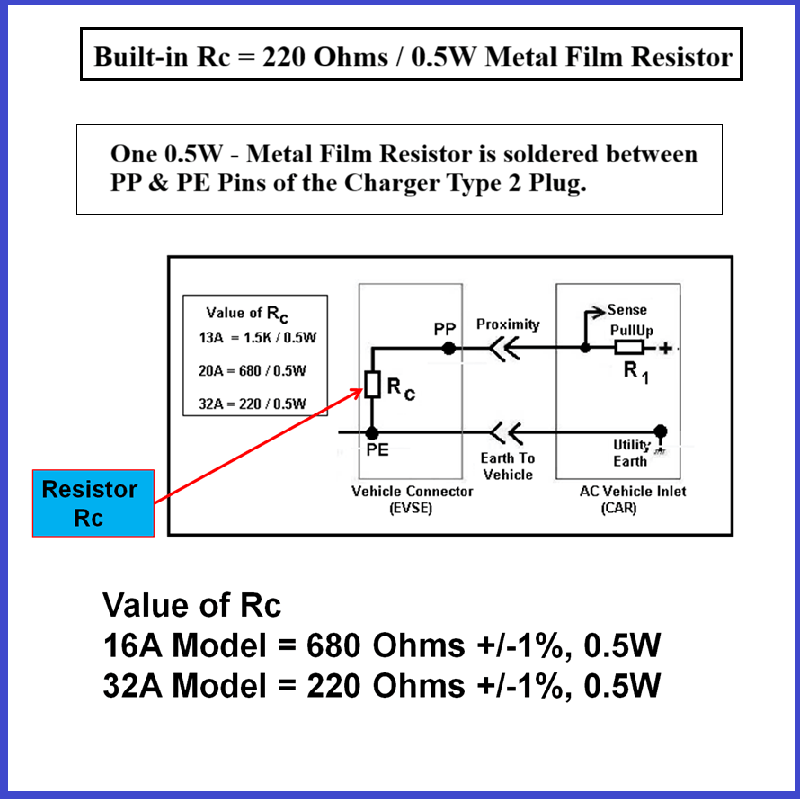

Designed specifically for integration into MSME and enterprise charging stations, this cable assembly features fully standardized Control Pilot (CP) and Proximity Pilot (PP) conductors. The wiring matrix is optimized for rapid motherboard connection—allowing you to confidently route the PP plug engagement status signal directly to your controller's logic inputs (such as pin D6) for instant, fail-safe state machine state changes.
Technical Specifications:

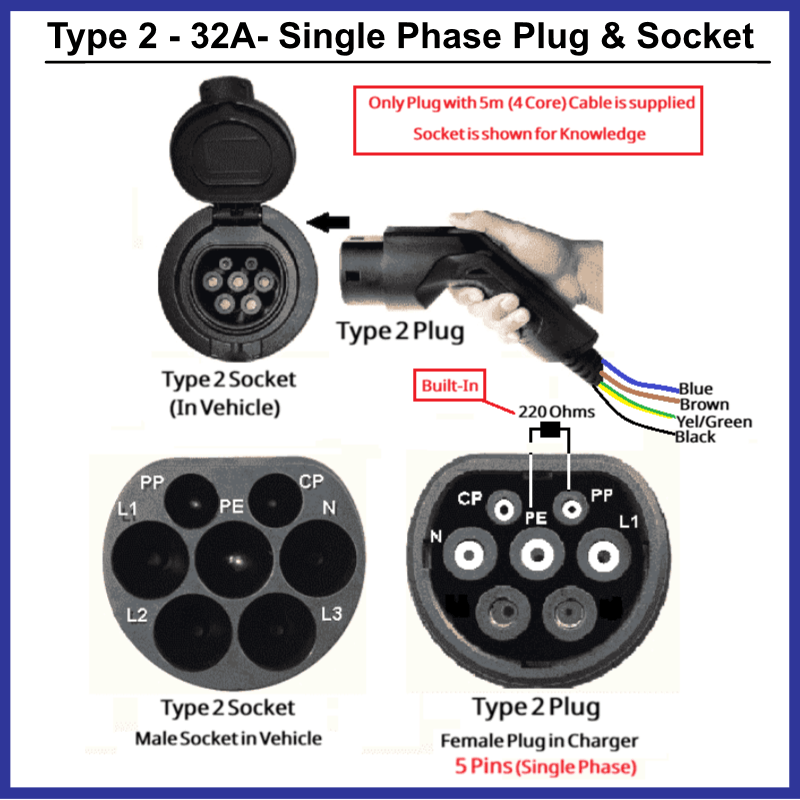

- Standard: IEC 62196-2 (Type 2 Mennekes)
- Electrical Rating: 32A / 250V AC (Single Phase, 7.4kW)

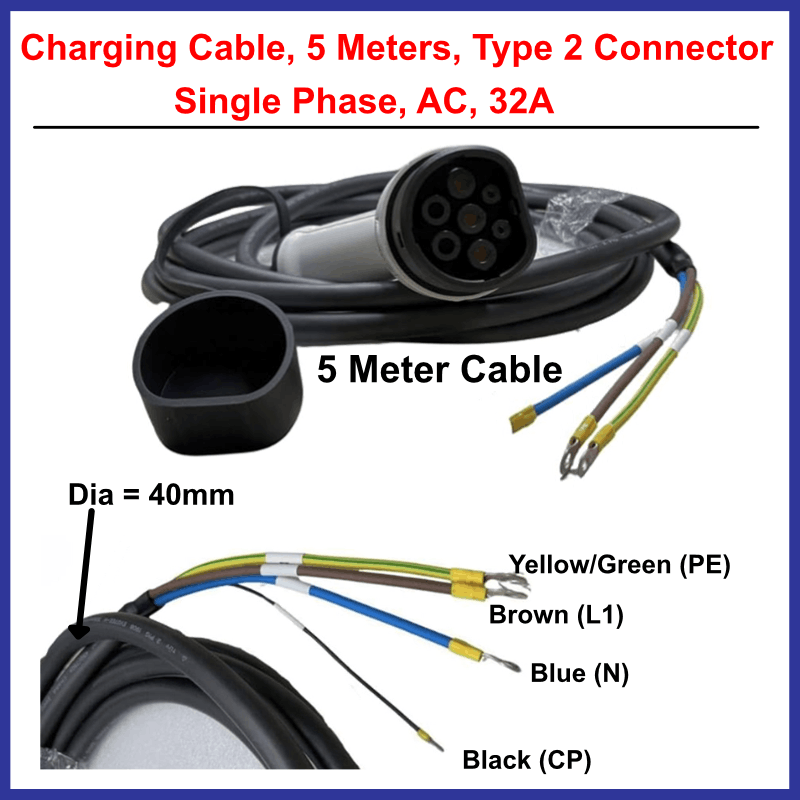

- Cable Length: 5 Metres
- Conductor Profile: High-purity oxygen-free copper (OFC) optimized for minimal voltage drop.
- Core Applications: 7.4kW commercial AC EV chargers, smart grid-tied EVSEs, and white-label charging station enclosures.
Additional information
| Maximum Cable Length | 5 Meter |
|---|
