Smart Scrolling Dot Matrix Display Card | Elevator LOP & COP

This Elevator dot matrix display board is a Smart Scrolling Dot Matrix Display for LOP. The board is designed by IIT Engineer with advanced Universal Compatibility and Dynamic Animation plus Built-in Diagnostics.

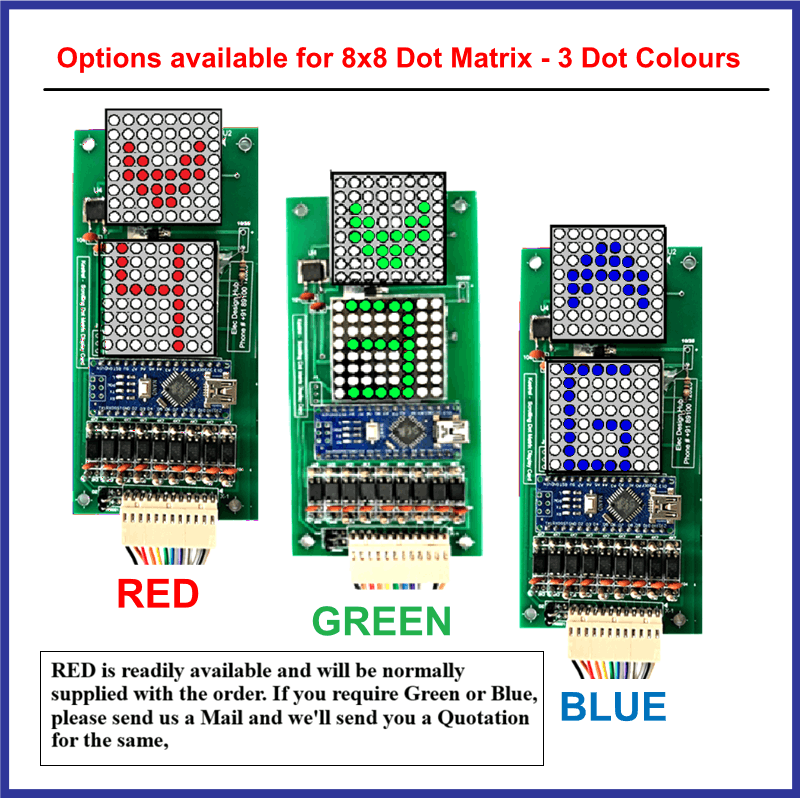

Powered by optimized firmware driving dual 8x8 LED matrices, this dot matrix display solves the headache in elevator modernization: communication compatibility.

The Landing Operation Panel (LOP) is the first point of contact between the passenger and the elevator. Our Display card doesn't just look premium with its fluid animated arrows; it is engineered to be the most versatile, installer-friendly display on the market. The Cards will be supplied along with a well written “User Manual”.

Engineering Marvels & Core Features of LOP COP scrolling indicator PCB

• Universal Dual-Mode Input (BCD & 7-Segment):

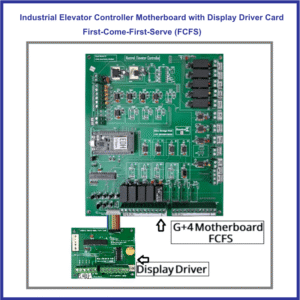

Stop worrying about motherboard matching. This Elevator dot matrix display board features a hardware jumper switch (PIN_MODE_SEL) that allows the on-board processor to instantly switch between reading standard Binary Coded Decimal (BCD) signals or raw 7-Segment parallel logic. It integrates seamlessly with Elec Design Hub motherboards or almost any third-party legacy controller.

• Intelligent Character Mapping & 'G' Floor Auto-Translation:

Our custom pixel-drawing engine doesn't just display raw inputs. The firmware intelligently intercepts standard zero-floor inputs (BCD 0 or 7-Segment 0x3F) and automatically renders a perfectly centered, custom-drawn 'G' for Ground, alongside other essential characters like 'P' (Parking), 'L' (Lobby), and 'F' (Fire). If you need any of the characters - 'P' or 'L' or 'F" to be displayed, please send us a detail mail to: designer@elecdesignhub.com.

Elevator floor display card with dynamic 8-Step Scrolling Arrows:

Enhance the passenger experience with mathematically smooth, fluid directional arrows. The firmware calculates an 8-step visual scroll based on dedicated UP/DOWN hardware inputs, executing the animation asynchronously without interrupting floor data updates.

Industrial Noise Immunity (RC Debounce):

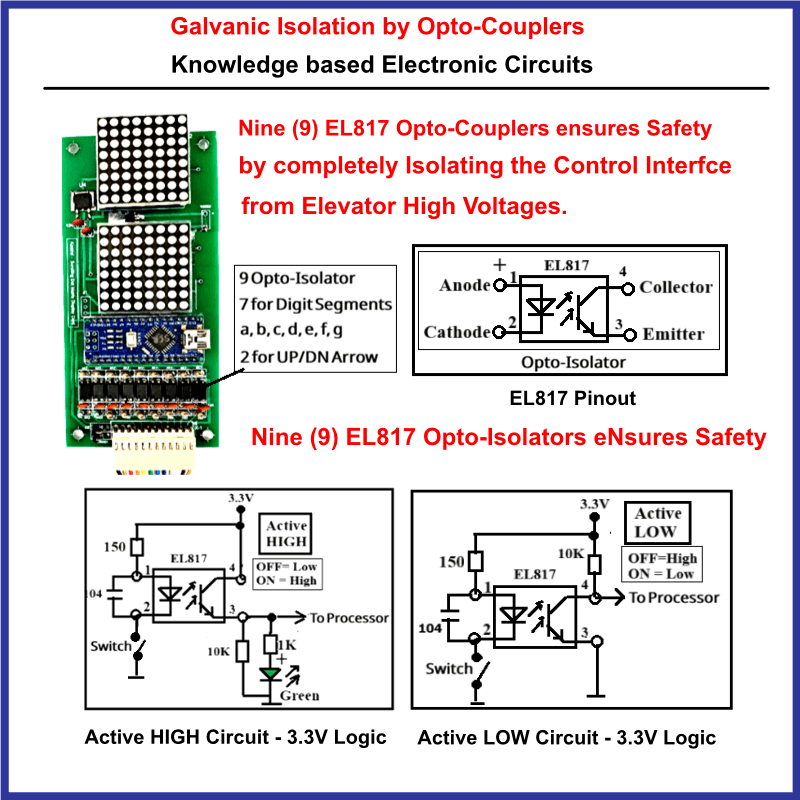

Long traveling cables in elevator shafts act like giant antennas for electrical noise. Our display features a strict 50-millisecond software debounce algorithm that filters out transient voltage spikes, ensuring the display never flickers or registers "garbage" characters due to EMI (Electromagnetic Interference). 9 (Nine) EL817 Opto-Couplers ensure Safety by completely isolating the control interface from Elevator High Voltages (See Image 2).

Fabricator's Advantage for LOP COP scrolling indicator PCB

Whether you are building a new G+4 / G+8 panel from scratch or modernizing a 20-year-old relay-based elevator, this Smart Scrolling Display adapts to your architecture. It is fully tested, universally compatible, and designed to eliminate installation guesswork.

Ultra-Thin Form Factor & Hardware Integration:

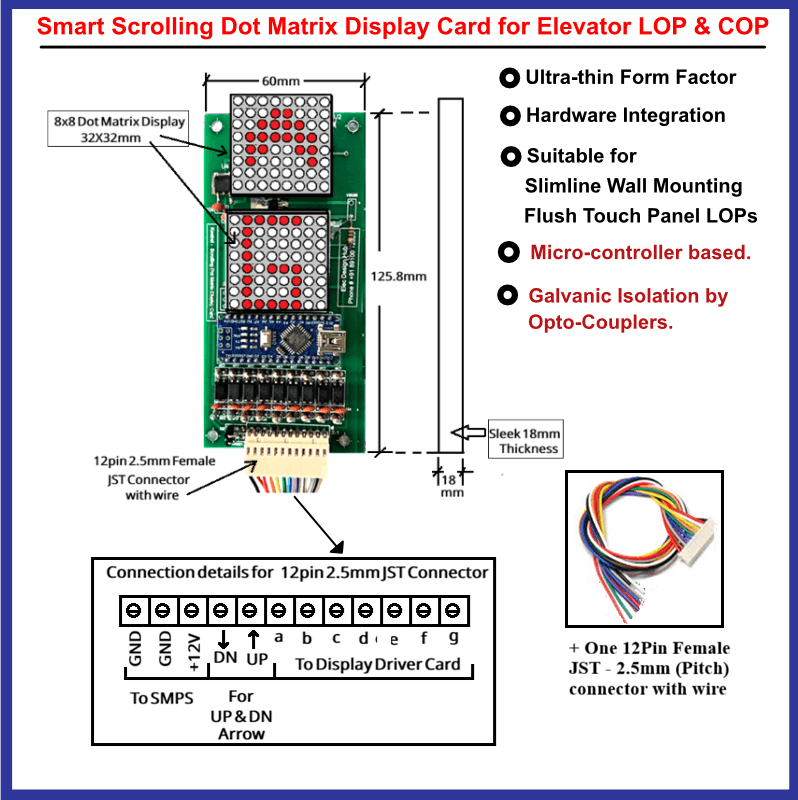

The Smart Scrolling Dot Matrix Display card is engineered with an ultra-thin physical profile to accommodate the tightest modern elevator panel designs. Measuring just 60mm in width and 125mm in length, with an incredibly low-profile height of only 18mm, this space-saving architecture makes the module highly suitable for slimline Wall Mounted LOPs and flush Touch Switch based LOP enclosures where internal depth is strictly limited.

To ensure rapid, secure, and standardized factory assembly, every single display card ships complete with a pre-crimped 12-pin 2.5mm pitch JST connector (Female) and an integrated 260mm color-coded wiring harness. This plug-and-play hardware approach completely eliminates tedious manual soldering on the fabrication floor, allowing your technicians to seamlessly bridge the display into any custom panel architecture with zero guesswork.

Comprehensive Field-Ready User Manual

To guarantee a flawless installation process on the fabrication floor or during site modernization, every Elevator dot matrix display board order includes a comprehensive engineering "User Manual". This is not a generic leaflet; it is a highly detailed field guide designed specifically to eliminate installation guesswork for your wiring technicians and maintenance teams.

• Precise Pinout Schematics: Complete color-coded wiring diagrams matching the included 12-pin 2.5mm JST harness, ensuring rapid integration and zero reverse-polarity mistakes.
• Jumper Configuration Tables: Clear, step-by-step instructions on setting the onboard PIN_MODE_SEL jumper to switch instantly between standard BCD logic and legacy 7-Segment parallel inputs.
• Mechanical Mounting Templates: Exact dimensional guides utilizing the ultra-thin 60mm x 125mm x 18mm form factor, optimizing your enclosure cutouts for both flush Touch Switch panels and slim Wall Mounted LOPs.
