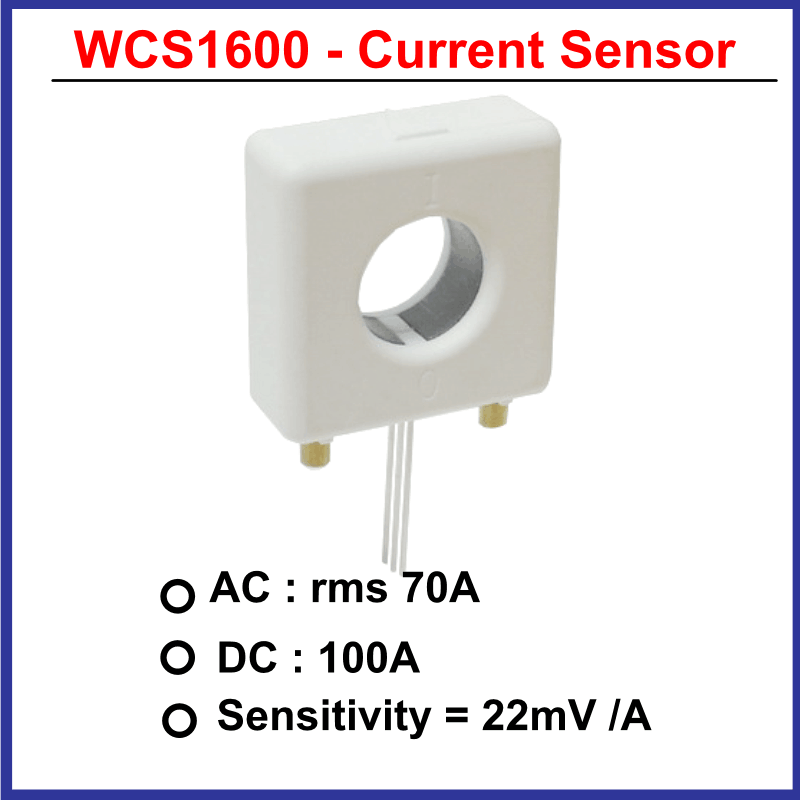

AC/DC Current Sensor – WCS1600
₹199.00
A heavy-duty AC-70A / DC-100A current sensor module designed for extreme-power industrial applications. Features zero-loss pass-through routing and a 22mV/A linear output, providing fail-safe current telemetry for commercial EV chargers and factory heavy machinery.
Please click the Link below to get a “Free – Overcurrent Protection Circuit using WCS1600”.
Extreme-Load 100A Current Sensor (WCS1600).
Designed strictly for high-power industrial environments, the WCS1600 is an extreme-load AC/DC Hall-effect sensor capable of continuously monitoring up to 100 Amps (DC). This is a mandatory component for engineers designing high-kW equipment such as commercial EV supply equipment (EVSE), heavy traction motors, and large-scale industrial factory automation systems.
Engineering Advantage:

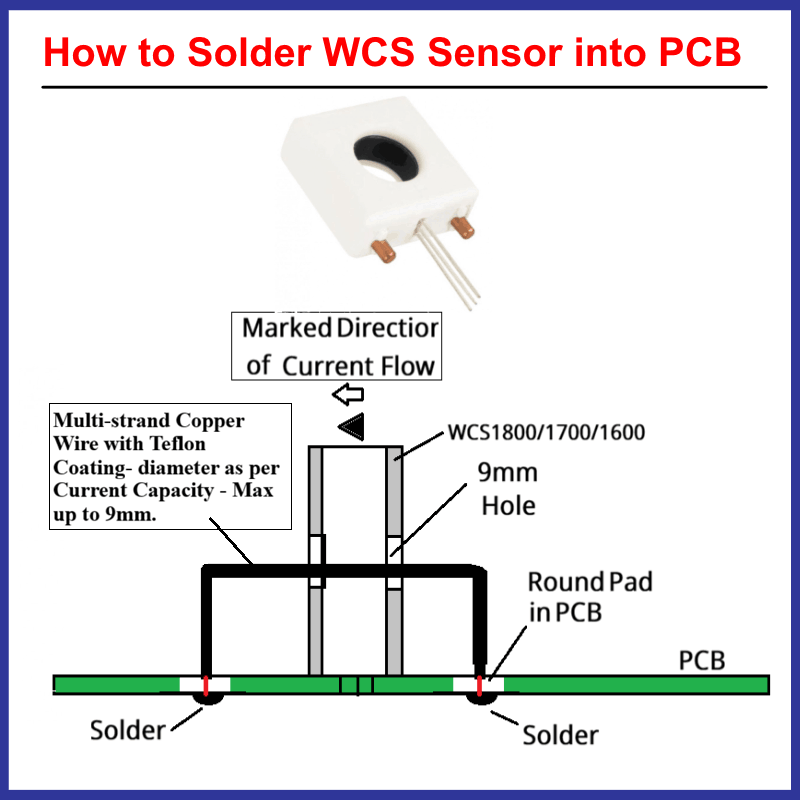

At 100 Amps (DC), traditional inline sensing is structurally dangerous and thermally inefficient. The WCS1600's zero-contact pass-through architecture guarantees that your primary power cable remains unbroken and thermally stable, while still delivering highly accurate, isolated 22mV/A telemetry straight to your motherboard's ADC.

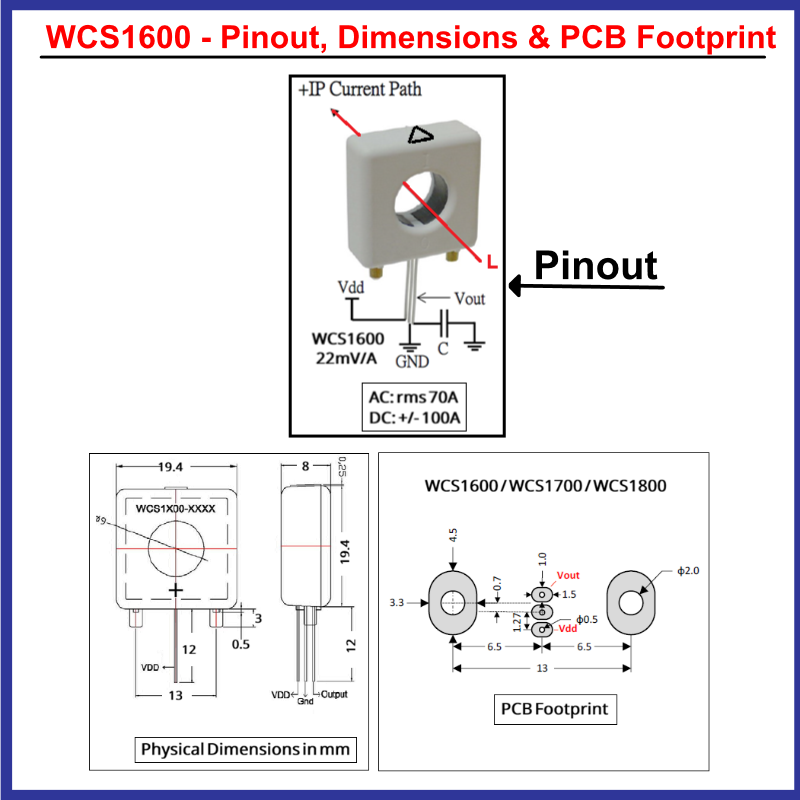

Technical Specifications:
- Current Detection Range: ±100A DC / 70A AC
- Output Sensitivity: ~22mV / A
- Operating Voltage (VCC): 3.0V to 12V DC
- Signal Output: Analog Voltage & Digital Over-current Fault Output
- Core Applications: Commercial EV chargers, industrial factory main-line monitoring, heavy traction motor drives, and solar inverter load management.
Additional information
| Vdd Voltage | 3V – 12V DC (Best to use 5V DC) |
|---|
