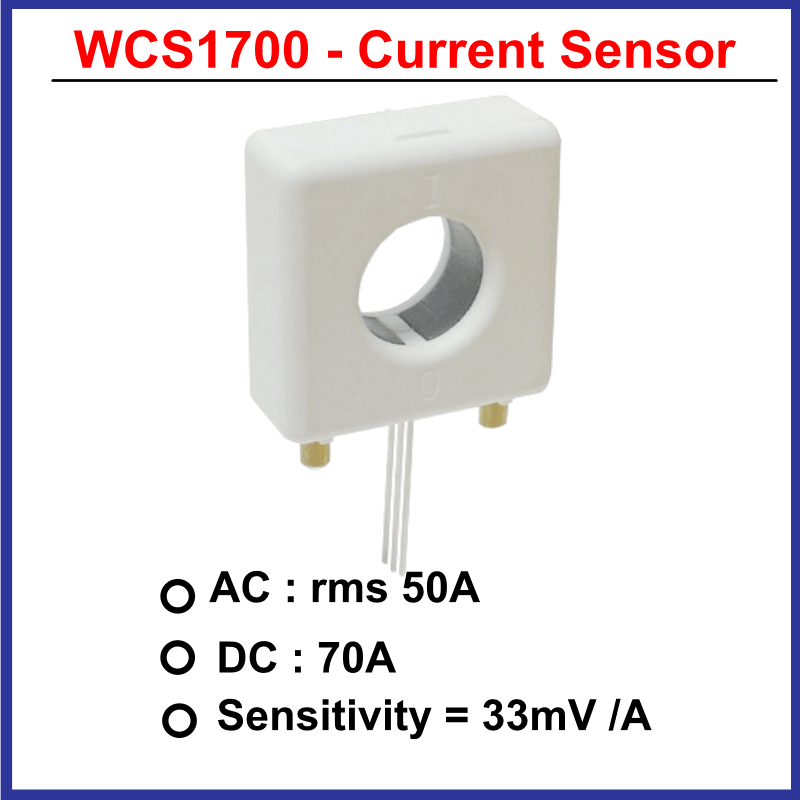

AC/DC Current Sensor – WCS1700
₹199.00
A ruggedized AC-50A / DC-70A Hall-effect current sensing module. Delivers a highly linear 33mV/A analog output with strict electrical isolation. Engineered for mid-range industrial machinery, heavy-duty motor drives, and advanced power distribution control.
Please click the Link below to get a “Free – Overcurrent Protection Circuit using WCS1700”.
Ruggedized 70A (DC) Current Sensor (WCS1700).
The WCS1700 module bridges the gap between light electronics and heavy industrial automation. Rated for up to 70 Amps (DC), this Hall-effect AC/DC current sensor is the ideal component for MSMEs and startup engineers developing high-load industrial machinery, UPS systems, and smart grid monitors. Engineering Advantage: The module isolates your sensitive 3.3V/5V logic architecture from high-voltage AC or DC power lines via its contactless, pass-through wire routing. It features a built-in trim pot for fine-tuning the over-current digital fault trigger, allowing you to execute rapid hardware-level shutdowns before software interrupts are even processed.
Technical Specifications:
- Current Detection Range: ±70A DC / 50A AC
- Output Sensitivity: ~33mV / A
- Operating Voltage (VCC): 3.0V to 12V DC
- Signal Output: Dual output (Linear Analog + Adjustable Digital Threshold)
- Core Applications: Industrial heater monitoring, heavy-duty motor protection, inverter load sensing, and AC mains diagnostics.
Additional information
| Vdd Voltage | 3V – 12V DC (Best to use 5V DC) |
|---|
